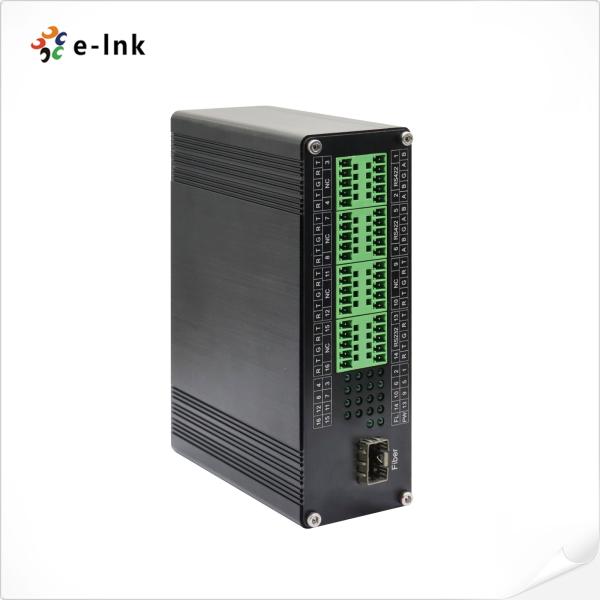

8 Channel RS232 RS485 Serial Fiber Media Converter SFP Port IP40 Aluminum Casing

Product Categories
E-link China Technology Co.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

8 Channel RS232 RS485 Serial Fiber Media Converter SFP Port IP40 Aluminum Casing

  • 1
  • 2

Brand Name : E-link

Model Number : LNK-IRS232/485-C08-SFP

Certification : ROHS,FCC,CE

Place of Origin : China

MOQ : 1 pcs

Price : $39-270

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 1000 pcs/month

Delivery Time : 5-12 working days

Packaging Details : Fiber Converter Standard Export Package

Keyword : Serial to Fiber Converter

Data Type : 8Ch RS232 / RS485 Bi-Direction

Fiber Interface : SFP Port

Application : DMX512 communication

Casing : IP40 Aluminum

Mounting Options : DIN-Rail Mount

Contact Now

Fiber Modem Industrial 8 Channel RS232 RS485 Serial Fiber Media Converter SFP Port
Serial To Fiber Converter Advantages

► Fan-less and Din-Rail design

► Built in Bi-Directional RS232/422/485(Terminal Block) Serial Port

► Supports Multi-Channel Serial Data Ports

► The high-speed serial data can be used for DMX512 communication in Stage Lighting Control

► -40°C to 80°C (-40°F to 176°F) Operating Temperature

Technical Indexes

RS232 Serial Interface

Physical interface

Industrial standard screw terminal

Data type

Up to 8Ch RS232 Bi-Direction

RS-232 signals

TxD, RxD, GND

Serial port line distance (copper)

15 meters

Baud Rate

0 ~ 800kbps

RS485 Serial Interface

Physical interface

Industrial standard screw terminal

Data type

Up to 8Ch RS485 Bi-Direction

RS-485 signals

Data+, Data-, GND

Serial port line distance (copper)

1000 meters

Baud rate

0 ~ 800kbps

Power Requirements

Power input

12~48VDC

Power consumption

<6W

Power connector

Terminal block

Power protection

Reverse polarity protection

LED Indicator

PWR

Power Supply

FL

Fiber Link Status

Data 1~16

Serial Data Signal

Mechanical

Dimensions (LxWxH)

119 x 114 x 50mm

Weight

0.55KG

Mounting Options

DIN-Rail Mount

Overview

It supports Multi-Channel Serial Data Ports: 4~16Ch RS232, 4~16Ch RS485 or 2~8Ch RS422. Also it can be configured with mixed signals, such as 8Ch RS232 + 8Ch RS485, 8Ch RS232 + 4Ch RS422, 8Ch RS485 + 4Ch RS422, etc. It features a Din-Rail Type design to give users an easy installation and maintenance purpose in any harsh industrial environments.

8 Channel RS232 RS485 Serial Fiber Media Converter SFP Port IP40 Aluminum Casing

8 Channel RS232 RS485 Serial Fiber Media Converter SFP Port IP40 Aluminum Casing

Ordering Information

Part Number Description

LNK-IRS232-C08-SFP

Industrial 8Ch RS-232 Serial to Fiber Converter, SFP Port (not including SFP modules), -40°C ~ 80°C

LNK-IRS485-C08-SFP

Industrial 8Ch RS-485 Serial to Fiber Converter, SFP Port (not including SFP modules), -40°C ~ 80°C

Product Tags:

Aluminum Casing Fiber Media Converter



8 Channel Serial Fiber Media Converter



SFP Port Serial Fiber Media Converter
